Features:
■ Heat Dissipation, Dust Prevention and Seismic Resistance
■ Support all Mini-ITX motherboards of Yanyue
■ Supporting a PCI or PCIEx16 extension
■ Additional 8 COM 1LPT 2 USB can be introduced on back
■ Two wireless antenna apertures and 5P Phoenix terminals behind.
■ Dust-proof sponge can be replaced and cleaned without shutting
down the machine
| Specification parameters | Optional configuration |

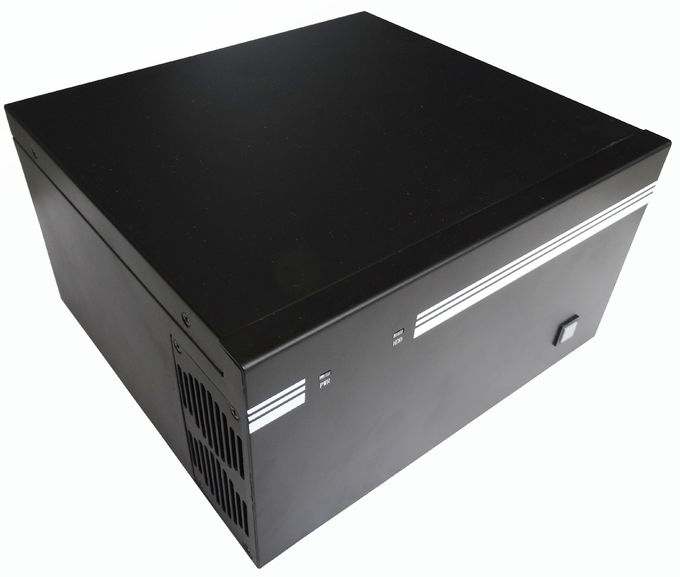

| Chassis | All steel structure, powder-sprayed black | Optional industrial grey and other colors |
| Front | POWER/HDD Indicator Lamp, Power Button Switch | Customizable customer LOGO or other requirements |
| Back | Main board large square hole, 1 expansion slot; 8 DB9, 1 DB25, 2
USB interface bits, 2 WIFI antenna slots, 1 group of 5P Phoenix
terminals | Customizable other interface bits |
| Side | Two suction fans can replace and clean dust-proof sponge without
shutting down | |
| Hard disk rack | 1 anti-seismic hard disk rack, supporting one 3.5 inch or two 2.5
inch hard disk | |
| Adapt motherboard | Intel B75/H81/H110 chip MINI-ITX motherboard | Optional all ITX motherboard of Yanyue |
| CPU/GPU | Intel i3 2120 | Support 3, 4, 6, 7 generations desktop CPU or board CPU |
| Memory | 4G DDR3 | Optional 2G/8G/16G notebook memory |
| Hard disk | 128G MSATA | Optional 32G/64G/256G Msata solid state hard disk; support 3.5 inch
mechanical hard disk or 2.5 inch capacity hard disk |
| Interface | AC input; 6USB (2 USB3.0); 2RJ45 (gigabit); 2VGA; HDMI, audio
output; MIC input; 6COM (standard) | Optional extraction of all interfaces on the chassis |
| Extension | 1 PCI Extension | Three, four, six and seven generations all support one PCIEx16
extension. |
| Size | No bracket:241mm * 223mm * 130mm | Net/Gross Weight | 3.5/4KG |
| Industrial Power Supply | 200W Industrial 1U Power Supply | |
| Installation mode | Bracket installation |
| Work and Environment |
| Working temperature | 0～60℃ | Storage temperature | -40～75℃ | Environmental humidity | 0~90% air humidity, no condensation |
| | | Vibration | 5-17Hz/1.0mm amplitude, 17-200Hz/1.0g acceleration |
| EMC | GB9254-2008 class A | Shock | 10g acceleration, 11ms duration |
| Installation Dimension Diagram | |
FAQ
1.Q: What's the Minimum Order Quantity(MOQ)?
A: Just 1 piece is OK.
2.Q: Are you a factory or a trading company?
A: We are one of the professional computer manufacturers located in
Shenzhen, China.
3.Q: What about the after-service?
A: Two-year warranty except human error. As for the following 2
years, we can repair it for free, but charge for parts is needed.
please contact us at any time when necessary. We besides our
professional technicians are at your service.
4.Q: Can you provide DIY/OEM/ODM service?
A: Yes, please advise the CPU, memory, SSD or HDD, WIFI, interface
ports and OS, the package box and housing(outer shell)as you wish,
prices will be varied according to the quantity and specification.
