    2PCI Fanless Industrial Embedded PC Computer Aluminium I5 3320M

    Ask Lasest Price
    Brand Name : E.hanli
    Model Number : QM77
    Certification : CE, FCC
    Price : Negotiation
    Payment Terms : T/T
    Supply Ability : motherboard 120000 pieces / month ; IPC 6000 sets / month
    • Product Details
    • Company Profile

    2PCI Fanless Industrial Embedded PC Computer Aluminium I5 3320M

    Qm77 Aluminium Fanless Embedded Compute IPC I5 3320M 2PCI

    Detailed Product Description
    Name:Embedded Industrial PCHard Disk Rack:1 Anti-seismic Hard Disk Rack, Supporting 2.5 Inch Hard Disks
    Adapt Motherboard:Dedicated MotherboardCPU/GPU:Intel I5 3320M
    Memory:4G DDR3Hard Disk:128G MSATA
    High Light:

    Aluminium Fanless Embedded Compute IPC

    ,

    2PCI Fanless Embedded Compute IPC

    ,

    Fan Free Embedded IPC


    Qm77 All-aluminium fan-free embedded IPC, supporting 3rd generation i3/i5/i7 notebook CPU, 2 expansion slots


    Features:

    All-aluminium toothed fan-free design, fully sealed

    Modular Wireless Material Design

    ■ Supporting 2nd and 3rd generation i3/i5/i7 notebook CPU

    Dual Network 6 Series 10USB (4 USB 3.0)

    Two PCI extensions or PCI+PCIE extensions

    Support MSATA + 2.5 inch dual hard disk

    Supporting VGA+HDMI Independent Double Display

    16-bit GPIO


    Specification parametersOptional configuration
    ChassisAluminum toothed chassis, sandblasting oxidation itselfOther colours can be customized
    FrontPower Switch; Power/HDD Indicator; 2USB2.0; 2USB3.0; GPIO; 6COM; PS/2KB/MS; 2 Antenna Holes

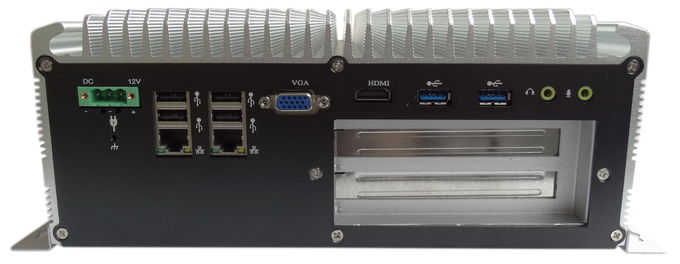

    BackDC12V input; 2RJ45 + 4USB2.0; VGA + HDMI display; 2USB3.0; Line out; Mic in; 2 slots
    Hard disk rack1 anti-seismic hard disk rack, supporting 2.5 inch hard disks
    Adapt motherboardDedicated motherboard
    CPU/GPUIntel I5 3320M
    Memory4G DDR3Optional 8G/16G DDR3 notebook memory
    Hard disk128G MSATAOptional 32G/64G/256G Msata solid state hard disk; support 2.5 inch solid state hard disk and mechanical hard disk
    SizeNo bracket:260*225*104mmNet/Gross Weight4.5/5KG
    Industrial Power SupplyStandardized 12V@5A adapter
    Installation modeBracket installation
    Work and Environment
    Working temperature0~60℃Storage temperature-40~75℃Environmental humidity0~90% air humidity, no condensation
      Vibration5-17Hz/1.0mm amplitude, 17-200Hz/1.0g acceleration
    EMCGB9254-2008 class AShock10g acceleration, 11ms duration
    Installation Dimension Diagram Mis-Qm77 Aluminium Fanless Embedded Compute IPC I5 3320M 2PCI 0

    Mis-Qm77 Aluminium Fanless Embedded Compute IPC I5 3320M 2PCI 2Mis-Qm77 Aluminium Fanless Embedded Compute IPC I5 3320M 2PCI 3Mis-Qm77 Aluminium Fanless Embedded Compute IPC I5 3320M 2PCI 4
